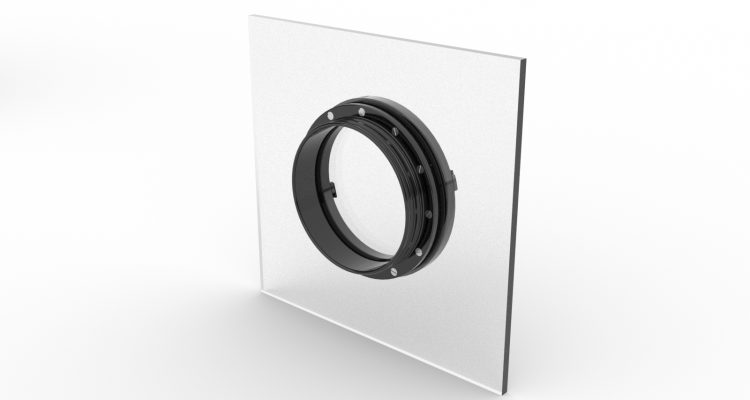

CIRCULAR GLOVE PORT ASSEMBLY  The circular glove port assembly consists of a circular port, inner securing ring and two gaskets. The port and gasket are secured to the screen with fixing screws that thread directly into inserts within the inner ring which sits on the reverse of the screen. The port has two grooves enabling [...]

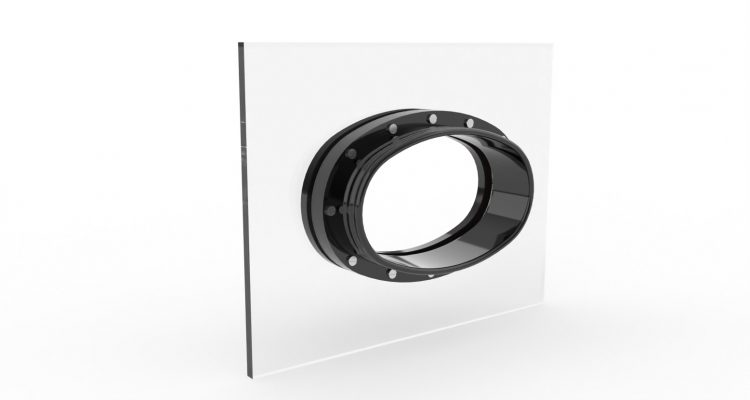

150 X 250MM EXTERNAL OVAL ASSEMBLY This oval assembly can be fitted to a maximum window thickness of 12 mm. If the window of the application that these ports are to be fitted to is thicker then the external oval assembly would be required. Recommended fixing screws M5 by 20mm pan head for a 6mm [...]

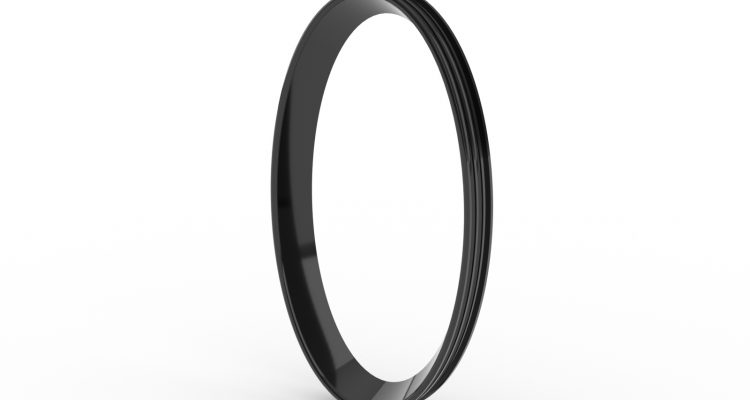

COMPLETED 200MM X 400MM EXTERNAL ASSEMBLY No Info... OVAL GLOVE PORT 200MM X 400MM Material: Black Acetal with 12 M5 brass threaded inserts Dimensions: Dimensions -Internal bore 200mm x 400mm x 44mm external dimensions 255mm x 455mm We can also make oval ports from a variety of other plastics including polyurethane resin, please contact us [...]

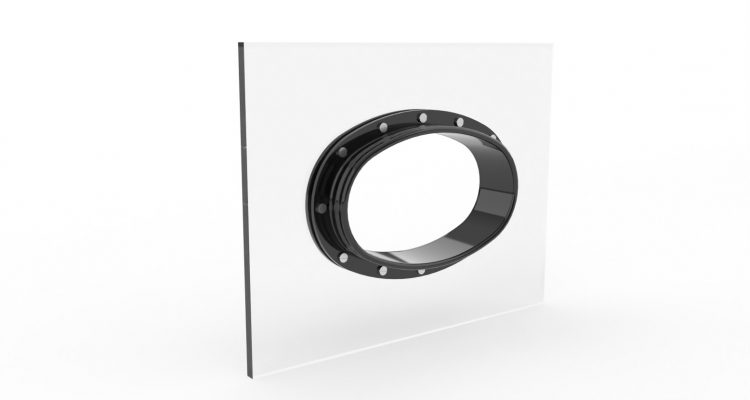

150MM X 250MM INTERNAL OVAL ASSEMBLY MIP's 150 x 250 internal oval is made up of a port, pressure ring and gasket. The unique design of the port allows it to be pushed through from the inside of the screen giving a smooth joinless internal finish. Pan head threaded screws hold the port in place [...]

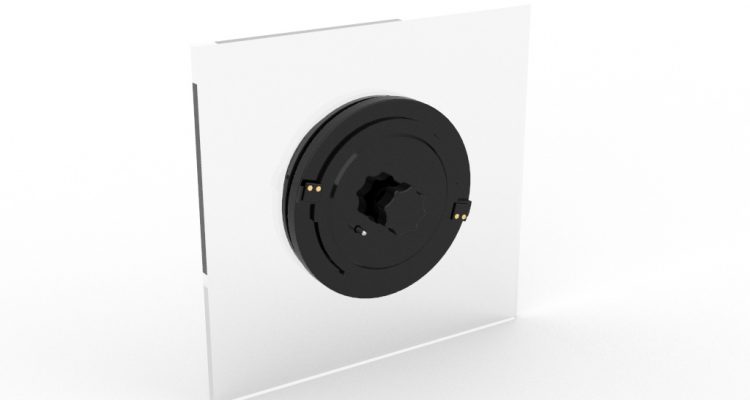

CIRCULAR GLOVE PORT BUNG MIP manufacture bungs for the 150mm and 192mm circular glove port. These bungs can be used under positive or negative pressure. The seal is made by expanding the rubber 'O' ring by means of a screw knob and the assembly of the bung is arranged so that the knob can be [...]

EXTENDED GLOVE PORT Material: Phenolic resin Dimensions: Dimensions:150mm (6"). Flange dia: 197mm with 8 x 7mm holes on 179.4mm PCD. Snout dia: 163.5mm Bore dia:152.4mm Length:73mm extended to 73mm or 97mm Glove Ports – Circular Neoprene Dry Box Gloves Latex Dry Box Gloves Glove Ports – 150 x 250mm External Oval Glove Ports – 200 [...]

SILICONE IRIS GLOVE PORTS Iris ports are ideal for applications where an inert atmosphere is not required. Marine & Industrial Plastics manufacture silicone iris ports using FDA 177.2600 & EC 1935/2004.40 compliant silicone and FDA approved HDPE. The iris itself consists of four overlaying off set layers of silicone. The aim of the iris is [...]
