Glove Ports – 150 x 250mm Internal Oval

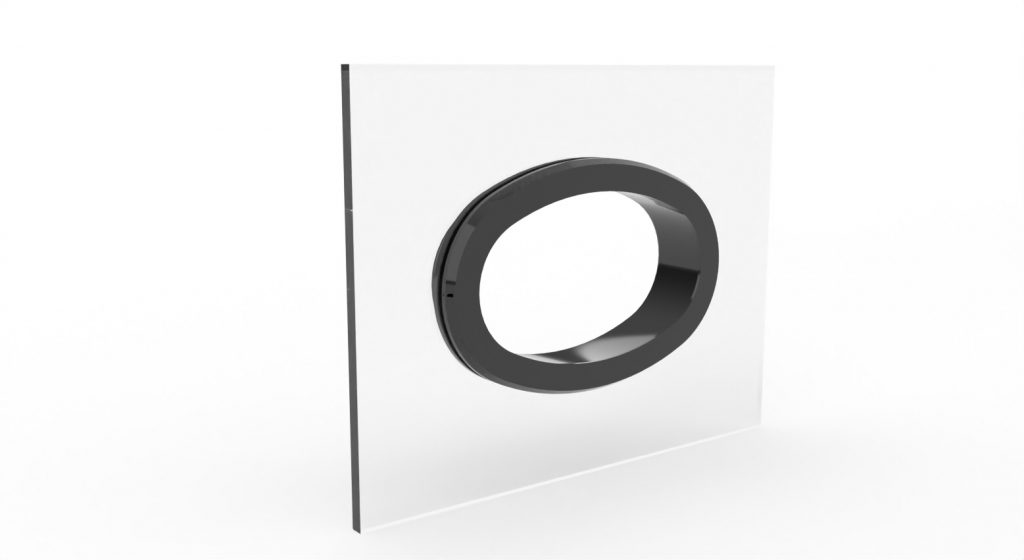

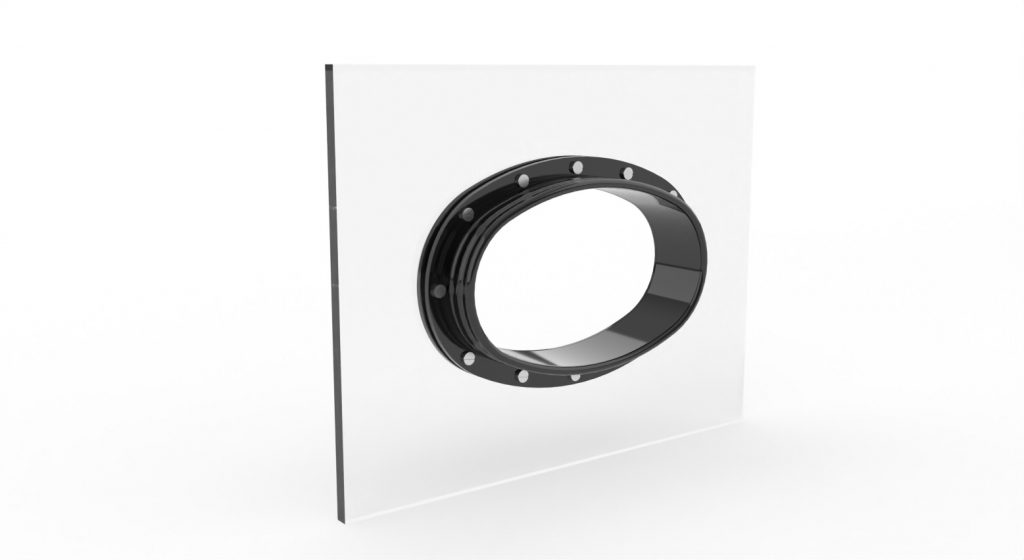

150MM X 250MM INTERNAL OVAL ASSEMBLY

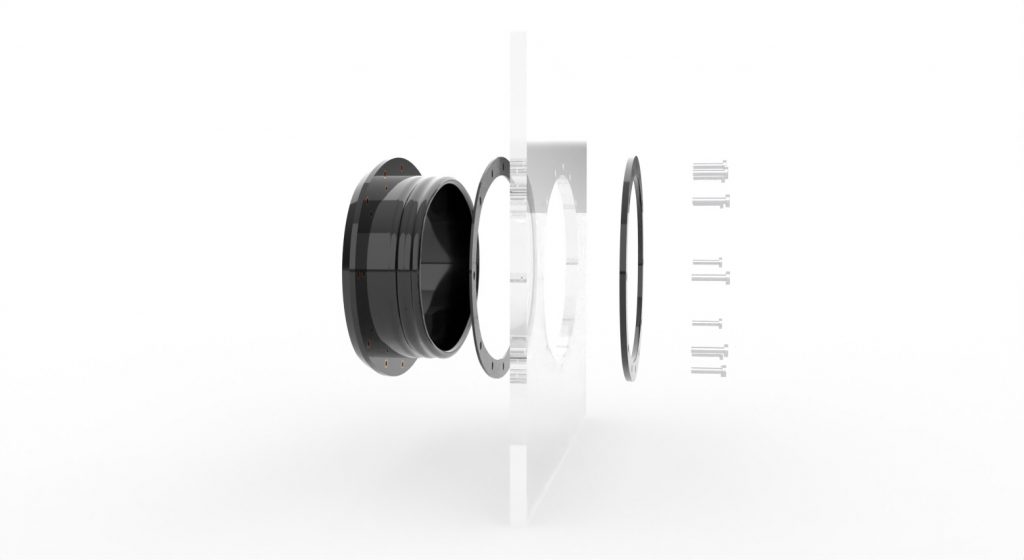

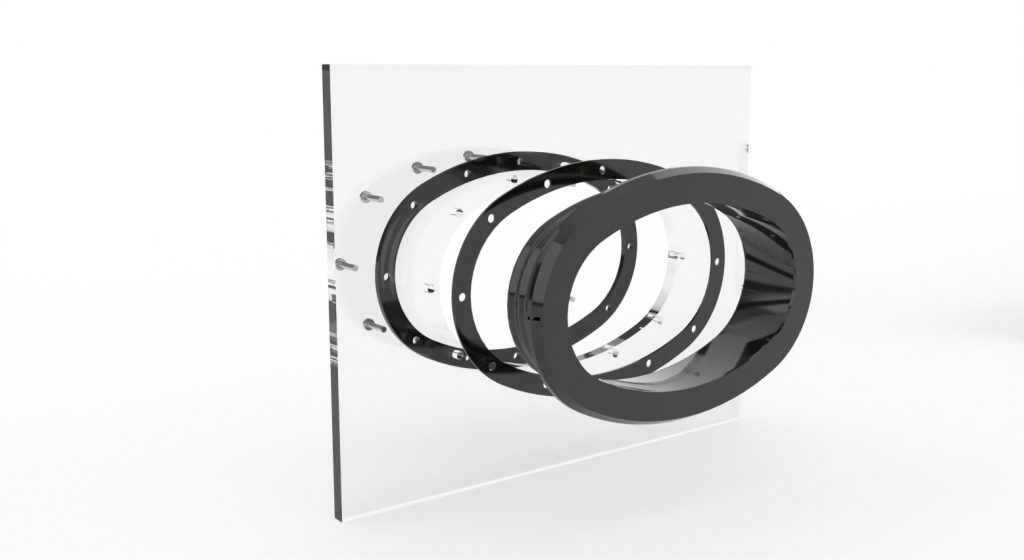

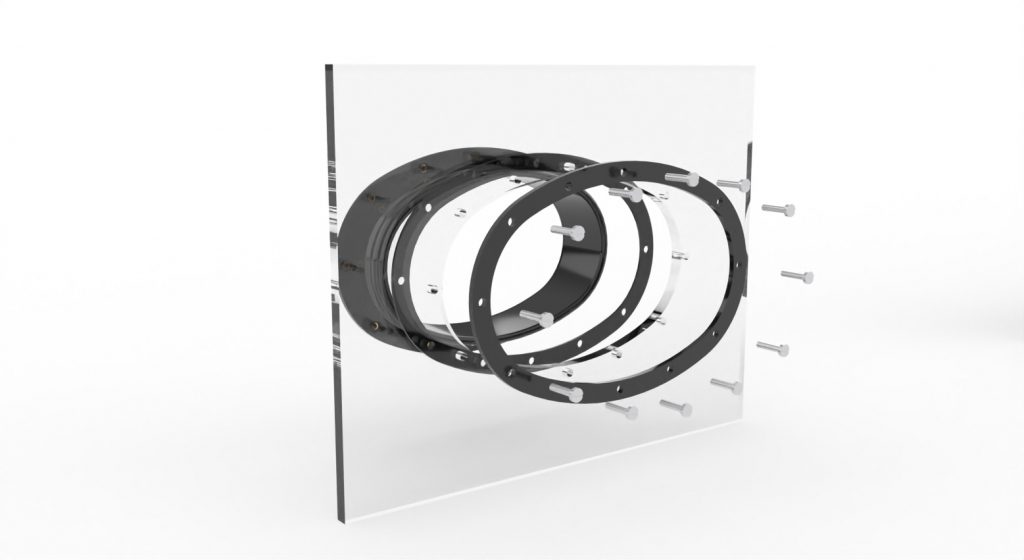

MIP’s 150 x 250 internal oval is made up of a port, pressure ring and gasket.

The unique design of the port allows it to be pushed through from the inside of the screen giving a smooth joinless internal finish. Pan head threaded screws hold the port in place with an acrylic pressure ring and gasket.

This oval assembly can be fitted to a maximum window thickness of 12 mm.
If the window of the application that these ports are to be fitted to is thicker than 12mm then the external oval assembly would be required. Please see here.

Recommended fixing screws M5 by 20mm pan head for a 6mm thick window

 150MM X 250MM INTERNAL OVAL PORT

Material:
Black Acetal with 12 M5 brass threaded inserts

Dimensions:
Dimensions – Internal bore 150mm x 250mm x 60mm deep external flange 198mm x 298mm

Note: We can also make oval ports from a variety of other plastics please contact us for prices

OVAL PORT PRESSURE RING 150MM X 250MM

Material:
Black Acrylic

Dimensions:
198mm x 298mm x 5mm with 12 fixing holes

OVAL PORT GASKET 150MM X 250MM

Material:
Neoprene

Dimensions:
198mm x 298mm x 2mm with 12 fixing holes

Interested in these Glove Ports?
We can supply these glove ports in various quantities to suit your requirements. Call 01329 847443 or message us today for more info.
