Glove Ports – 150 x 250mm External Oval

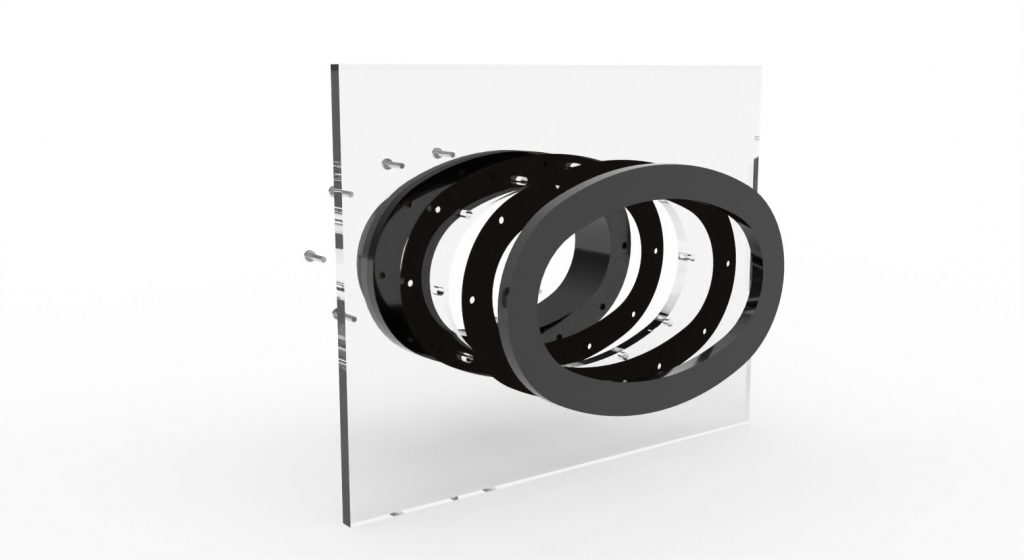

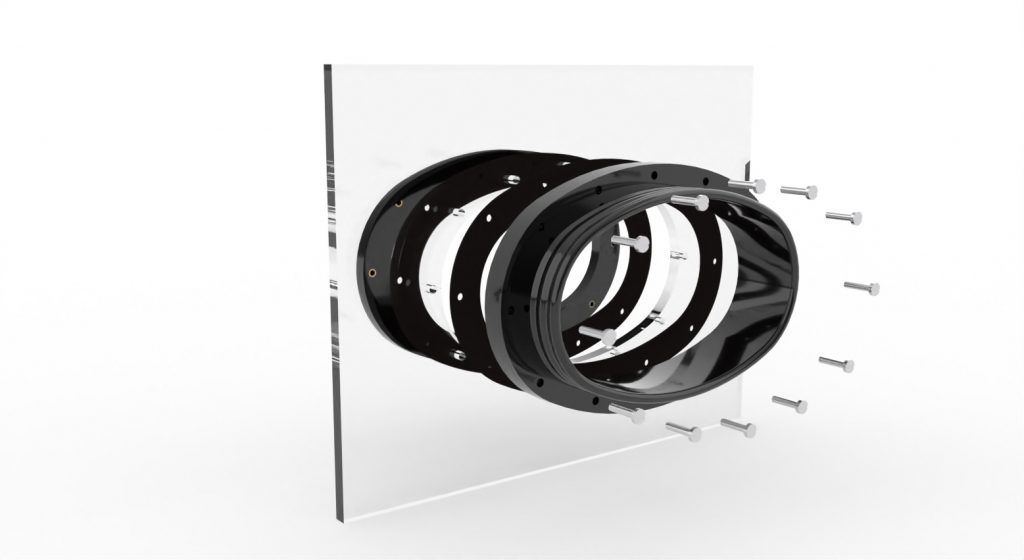

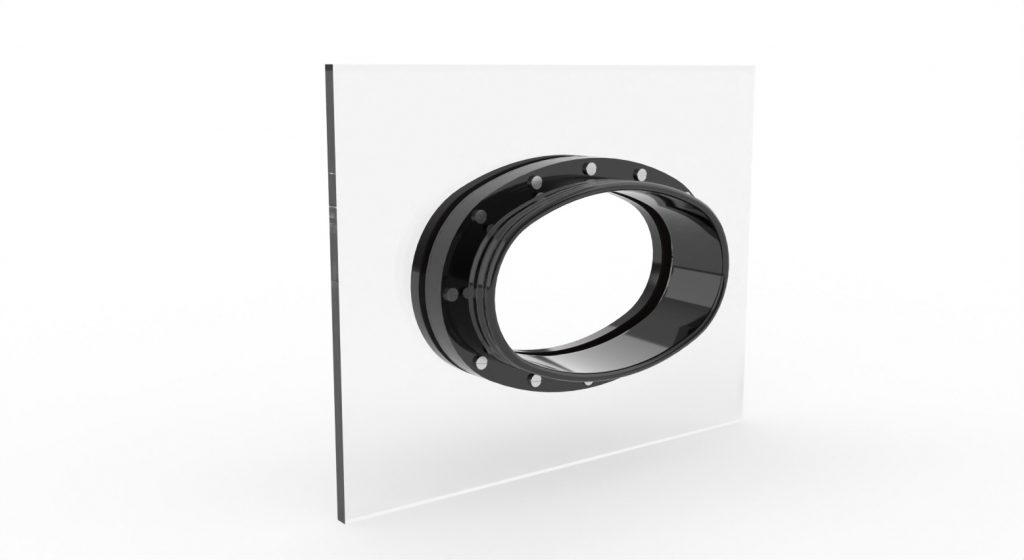

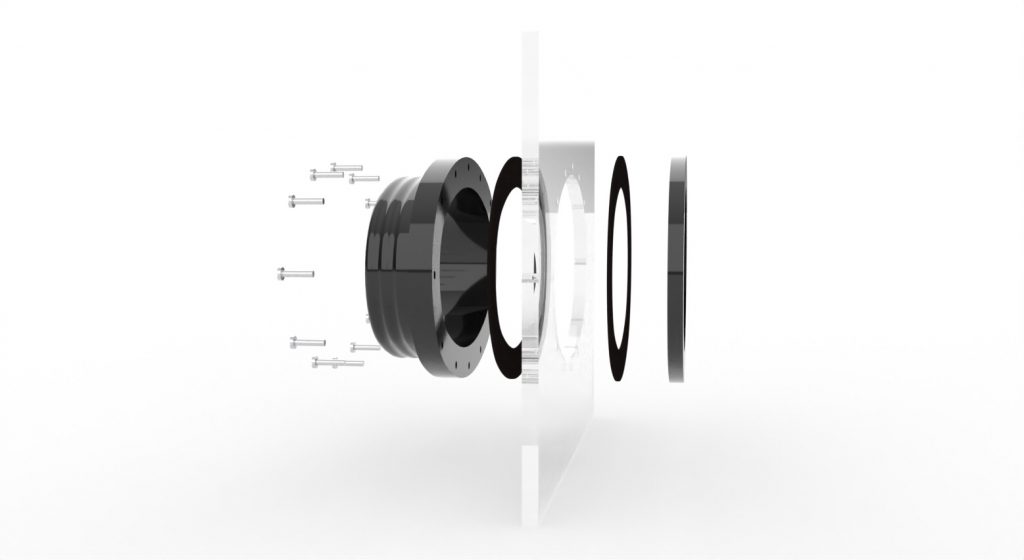

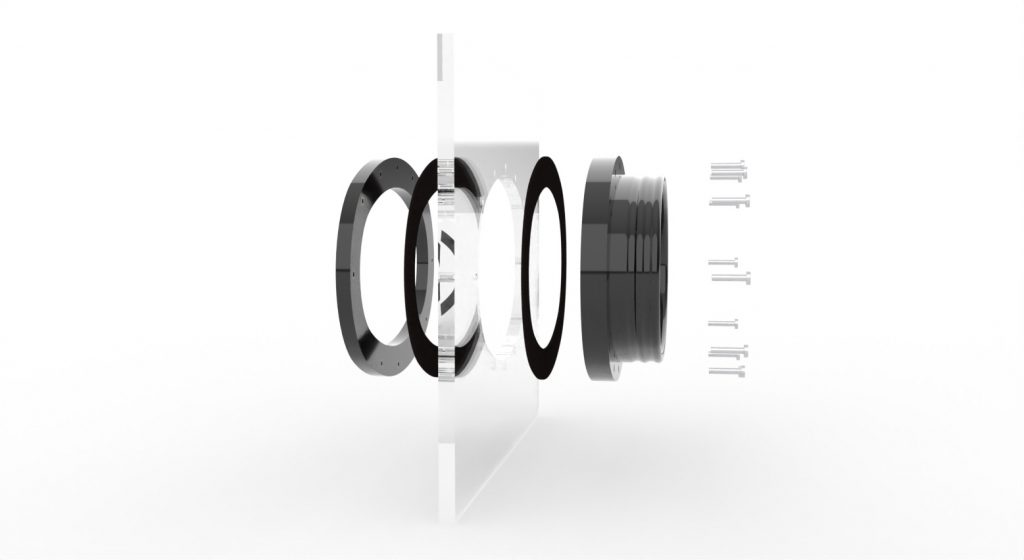

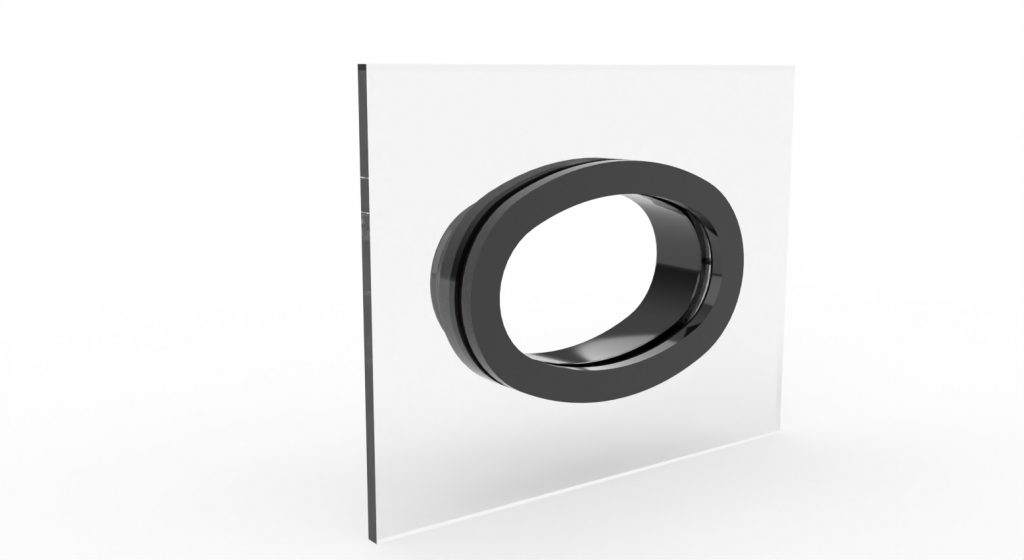

150 X 250MM EXTERNAL OVAL ASSEMBLY

This oval assembly can be fitted to a maximum window thickness of 12 mm.
If the window of the application that these ports are to be fitted to is thicker then the external oval assembly would be required.

Recommended fixing screws M5 by 20mm pan head for a 6mm thick window

OVAL GLOVE PORT 150MM X 250MM

Material:
Black Acetal with 12 M5 brass threaded inserts

Dimensions:
Internal bore 150mm x 250mm x 60mm deep external flange 198mm x 298mm

OVAL GLOVE PORT INNER SECURING RING 150MM X 250MM

Material:
Black polyurethane resin with 12 M5 brass threaded inserts

Dimensions:
Internal bore 144mm x 244mm x 12mm

OVAL GLOVE PORT GASKET 150MM X 250MM

Material:
Black Neoprene

Dimensions:
Internal bore 144mm x 244mm x 2mm with 12 fixing holes
